Electric Chain Hoist Description:
Electric Chain Stage Hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the most important parts of the machine is chain and brake system.

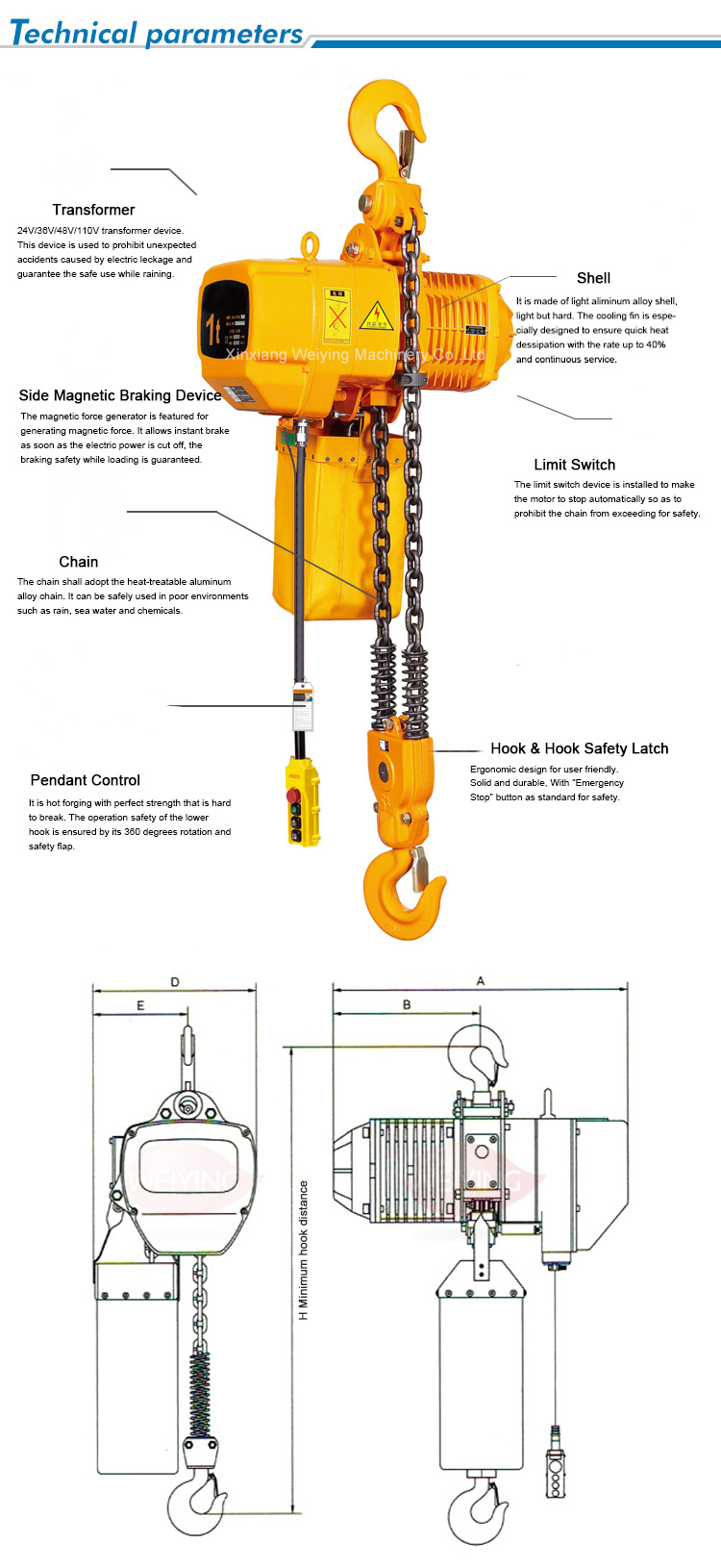

Electric Chain Hoist Drawing:
Electric Chain Hoist Data:
| Single Speed | Technical Parameters |
| Model | 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | 03-03S | 05-02S |
| Capacity(T) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 |
| Lifting Speed(M/Min) | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 |
| Motor Power(Kw) | 0.8 | 1.5 | 3 | 3 | 1.5 | 3 | 3 | 3 | 1.5 | 3 |
| Rotation Speed(R/Min) | 1440 |
| Insulation Grade | F |
| Power Supply | 3P 220V-690V |
| Control Voltage | 24V/36V/48V |
| No. Of Chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec. Of Load Chain | φ6.3 | φ7.1 | φ10.0 | φ10.0 | φ7.1 | φ11.2 | φ11.2 | φ10.0 | φ7.1 | φ11.2 |
| Net Weight(Kg) | 47 | 61 | 108 | 115 | 73 | 115 | 122 | 131 | 85 | 151 |
| |
| Dual Speed | Technical Parameters |
| Model | 0.5-01D | 01-01D | 1.5-01D | 02-01D | 02-02D | 2.5-01D | 03-01D | 03-02D | 03-03D | 05-02D |
| Capacity(T) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 |
| Lifting Speed(M/Min) | 7.2/2.4 | 6.9/2.3 | 9.0/3.0 | 6.9/2.3 | 3.3/1.1 | 5.4/1.8 | 5.4/1.8 | 4.5/1.5 | 2.4/0.8 | 2.7/0.9 |
| Motor Power(Kw) | 0.8/0.27 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 |
| Rotation Speed(R/Min) | 2880/960 |
| Insulation Grade | F |
| Power Supply | 3P 220V-690V |
| Control Voltage | 24V/36V/48V |
| No. Of Chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec. Of Load Chain | φ6.3 | φ7.1 | φ10.0 | φ10.0 | φ7.1 | φ11.2 | φ11.2 | φ10.0 | φ7.1 | φ11.2 |
| Net Weight(Kg) | 54 | 74 | 144 | 150 | 86 | 148 | 159 | 168 | 102 | 184 |
Detailed Images:
1. Aluminum alloy shell , light but hard .
2. G80 Load chain or Japan FEC G80 load chain, can be used in poor invironment .
3. Hook: be hot forged with perfect strength , hard to break .
4. Push button, remote control : imported from Taiwan .
5. 3 phase electric chain hoist & Single phase electric chain hoist is optional

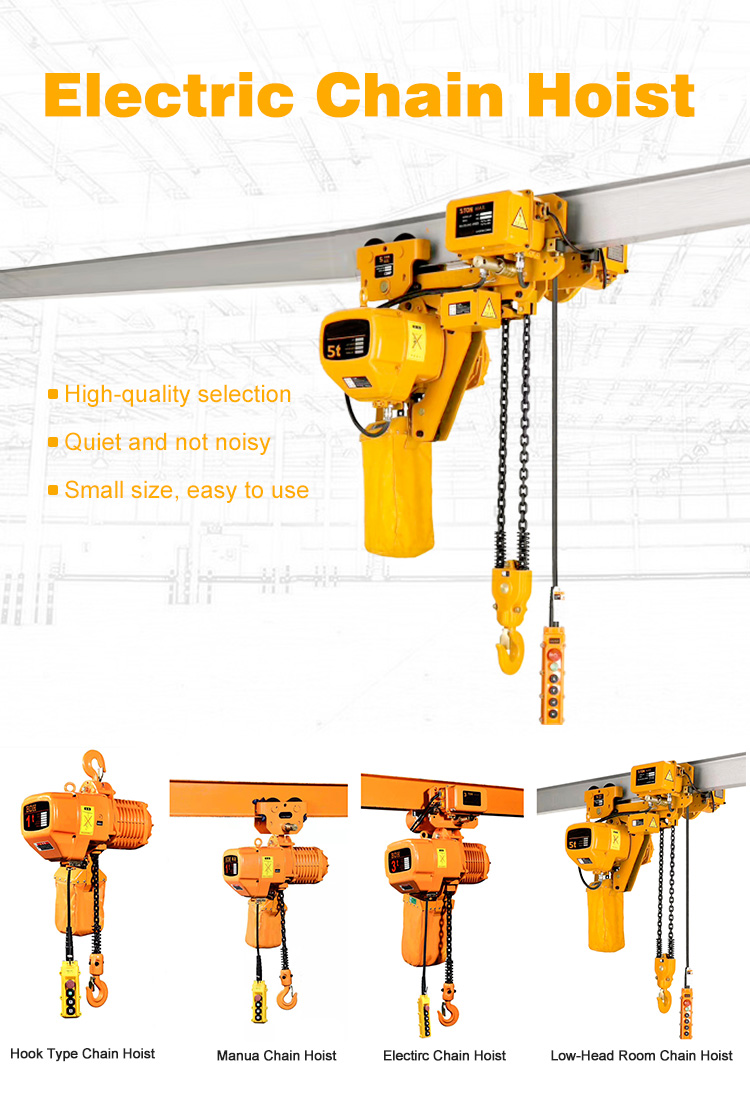

Different Types of Electric Chain Hoist
- Hook type electric chain hoist
- Electric chain hoist with manual trolley
- Electric chain hoist with electric trolley
- Low headroom electric chain hoist
Electric Chian Hoist Application
- Widely used in factories, warehousing, wind power stations, logistics, ports, construction and other fields.
- For lifting or loading. Or lift heavy objects for work or maintenance.
- It can be controlled by a ground handle or a wired (wireless) remote.
- It can be suspended and fixed, and can also be used in conjunction with monorail electric trolleys.
Packing and Delicery:
- Hoist parts are packed by high quality plywood crate, to reduce distortion in conveying.
- Transport ways are based on reducing costs & keep safety.
